200KW Diesel generator set
Model characteristics
● Weichai WP10D264E350 engine ;
● Optimize the configuration of the engine intake and fuel system, explore the engine potential,
and focus on optimizing the fuel consumption in the 60%~90% load rate range, with low fuel consumption;
● Optimize the intake and exhaust structure, use a special flat bottom oil pan, and reduce the overall height;
● Rear air filter reduces the overall width;
● Compact structure, ideal power for mute unit;
● Cold adaptability: the engine can be started directly without auxiliary measures at - 15 ℃;
-At 35 ℃, the engine can be started smoothly by preheating the intake air;
● Plateau adaptability: when the altitude is less than 3000m, the engine can output ratedPower;
When the altitude is greater than 3000m, the engine can work reliably;
● Industry leading product performance indicators;
● Advanced unit security system;
● Professional application integration capability of generator sets;
● Structural/functional solutions for multiple application scenarios;
● Adopt electronically controlled high pressure common rail technology, and the emission reaches the national III emission standard ;

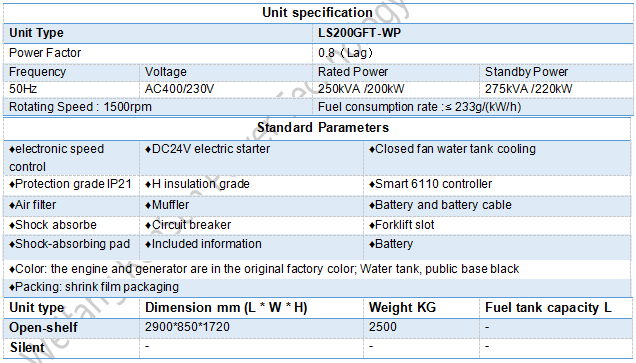

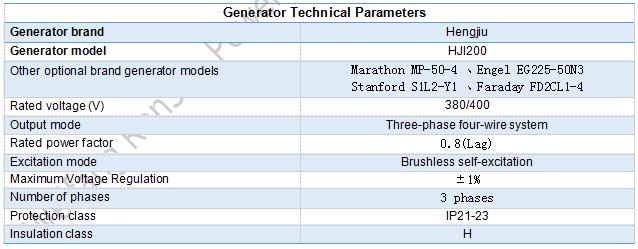

Technical parameter
