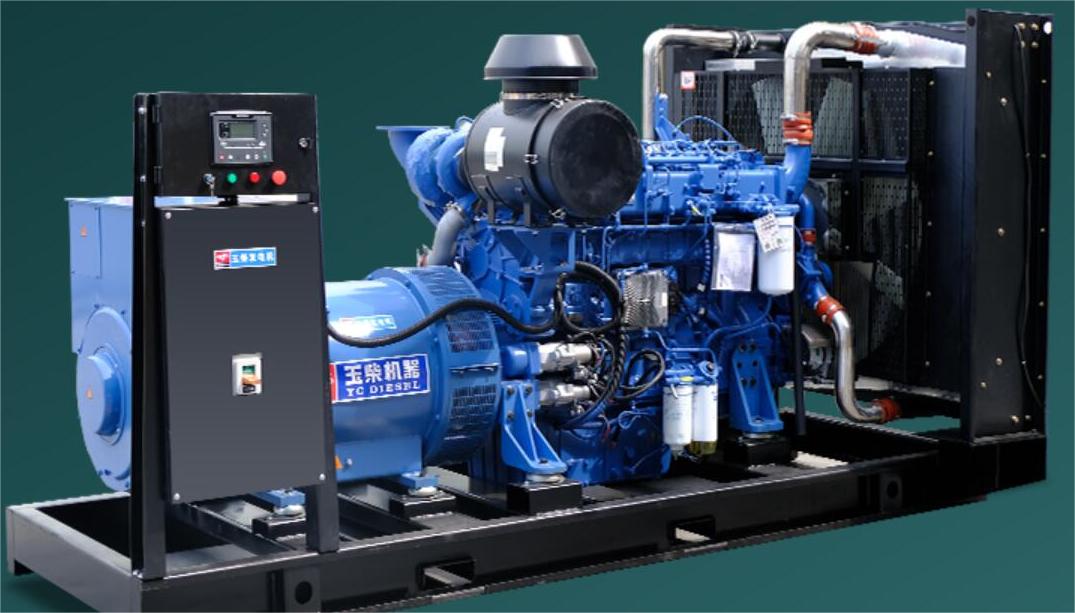

200KW Diesel generator set
Model characteristics
● Model: Guangxi Yuchai YCA08350-D30 ;
● Structure: high-strength cylinder block, alloy forged steel crankshaft, alloy steel connecting rod and internal cooling oil
passage piston Make the engine more durable, and have a lighter and more compact structure among similar products;
● Intake: supercharging, air air intercooling;
● The advanced and mature electronically controlled high-pressure common rail+efficient turbocharging intercooling technology
is adopted to precisely control the fuel injection quantity,The intake air is sufficient to ensure full combustion,
low fuel consumption and low emissions of the diesel engine under different loads;
● The full flow oil cooler is adopted to increase the heat dissipation efficiency by 30% and effectively reduce the oil temperature,
Make the engine oil lubricate the parts at a reasonable temperature to reduce friction loss ;
● The piston is cooled by internal cooling oil passage, which effectively reduces the piston temperature and has a long service life ;
● Meet the requirements of G3 level of generator set performance;
● Adopt German FEV technology platform; Reliability, fuel consumption and other main performance indicators have reached
Domestic advanced level; Conform to T3 standard of non road countries ;

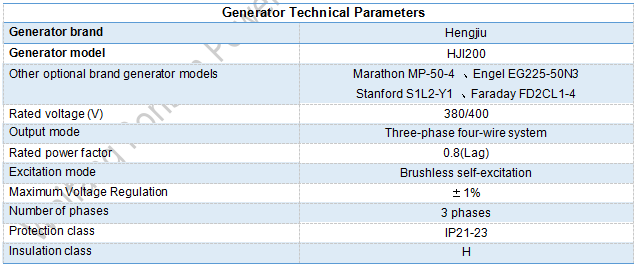

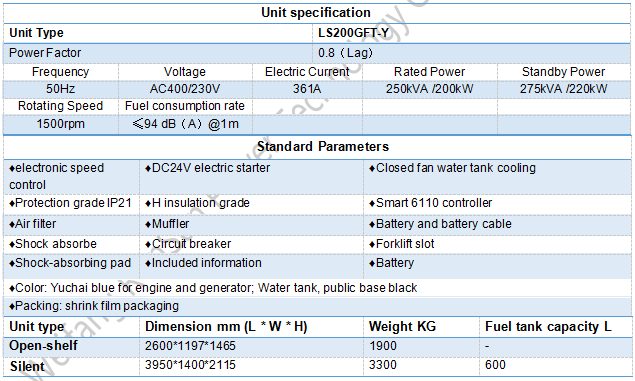

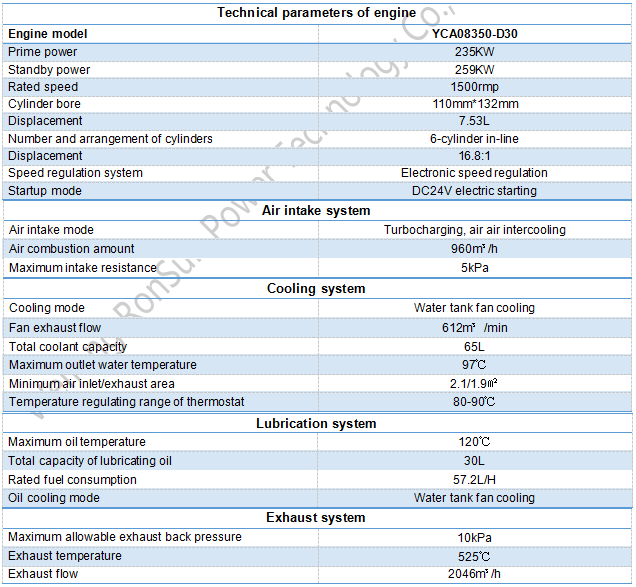

Technical parameter
